J-Head hotend

The hotend kit of a 3d printer is an important component of a 3d printer

It consists of a positioning zone, a feeding zone, a fusing zone and an enrichment zone. The positioning zone is used for the initial positioning of the filament, so that the filament can enter the feeding zone in an accurate and smooth manner.

The feed zone consists of an active gear and a driven bearing wheel with a specific gap between the two wheels, the size of which should be sufficient to allow the wire to move steadily forward under the action of the clamping friction F of the two wheels.

the melt zone consists of a throat channel, a stabilising frame, a heat insulation layer and a heating block where the unmelted and molten filament material forms a piston action in the channel, forcing the filament material to be ejected from the nozzle

The enrichment area consists of the nozzle, table and workpiece. During the enrichment printing process, the X and Y directions are controlled by the nozzle movement and the Z direction, i.e. the thickness of each layer printed, is controlled by the up and down movement of the table.

Product Compare (0)

Sort By:

Show:

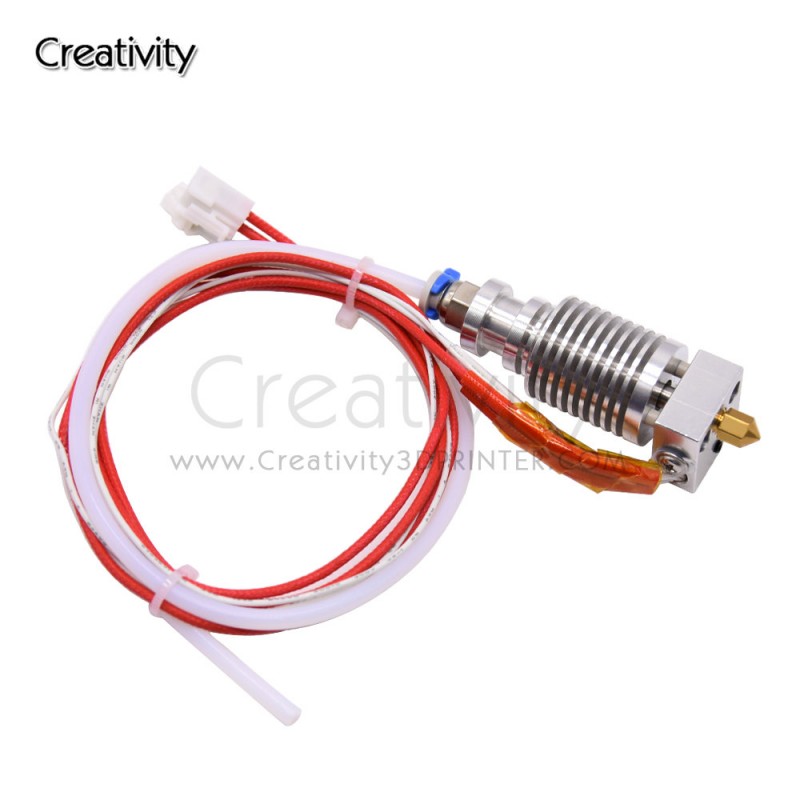

V5 J-head Hotend Ki...

$9.64 $11.76 Ex Tax: $9.64

Feature:Input Voltage: 12V, 24VHeat Sensor: 100kΩTerminal: PH2.0Temp: 260℃ MaxDefault nozzle diameter: 0.4mmSupport Filament: 1.75mm Packing list:1/2PCS V5 J-head Hotend Kit (12V or 24V) Tips:After receiving the product, re-check the tightening, and then use ShenZhen Creativity Technolo..

2 In 2 Out Extruder ...

$9.23 $11.25 Ex Tax: $9.23

Packing list1pc extruder set2pcs heating pipe (default 12V 40W),if you need 24V 40W,please leave message to us.2pcs NTC 100K thermistor with wire 1pc 3010 12V cooling fan2pcs V6 Aluminium Block2pcs Teflon Throat2pcs V6 Brass Nozzle4pcs fixed Screws ShenZhen Creativity Technology Co.,Lt..

3D Printer Accessori...

$3.38 $4.12 Ex Tax: $3.38

Item details Nozzle Size：0.4mm for 1.75mm Fliament.( If you need 0.2/0.3/0.5/0.6/0.8 Nozzle size , please tell us before the order) Thermistor：NTC100K B3950, 1 meter wire. Heater wire：12V or 24V, 40W, 1meter wire. ShenZhen Creativity Technology Co.,Ltd Descrip..

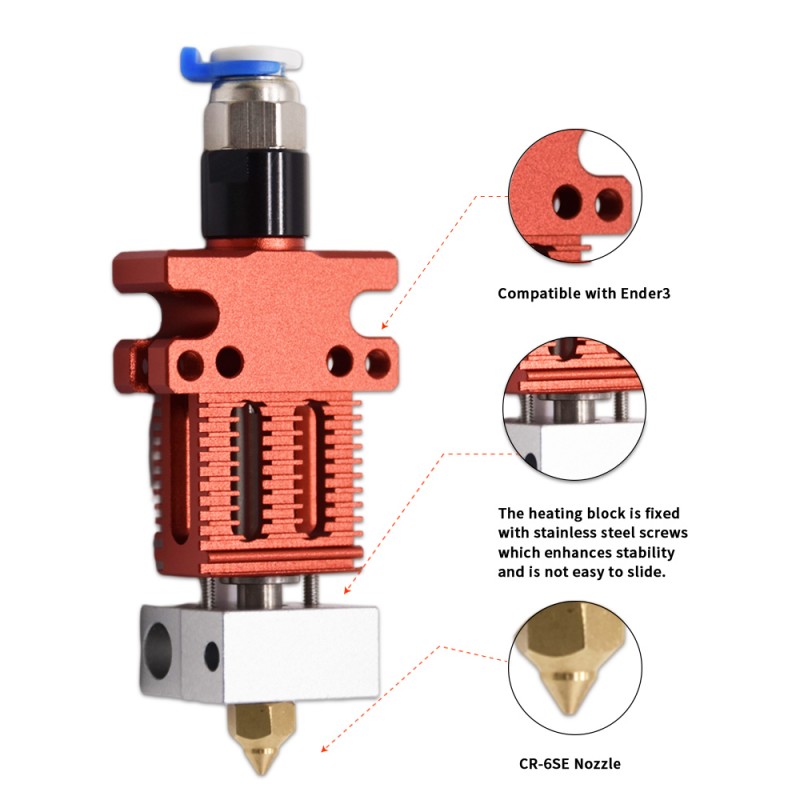

3D Printer CR-6 SE A...

$10.05 $12.26 Ex Tax: $10.05

ShenZhen Creativity Technology Co.,Ltd Description: Creativity is an innovative high-tech enterprise specializing in 3D printer design, R&D, production, sales, spare parts and 3D printer related derivatives. The company is committed to the development and innovatio..

3D Printer Hotend Pa...

$14.82 $18.07 Ex Tax: $14.82

SET1: Copper Heating Block + Copper plating nozzleSET2: Copper-plated Heating block + Hard steel nozzleSET3: Aluminum Heating Block + Brass nozzle ShenZhen Creativity Technology Co.,Ltd Description: Creativity is an innovative high-tech enterprise specializing in 3D..

3D Printer Parts 2 I...

$9.64 $11.76 Ex Tax: $9.64

Feature:The external dimensions of the main body conform to the CR radiator, and the volume is small and does not occupy the molding space. Strong compatibility.Made of all metal, reliable and durable. Imported pure transparent PTFE tube is used, and the feed is visible.High-power heating rod and 10..

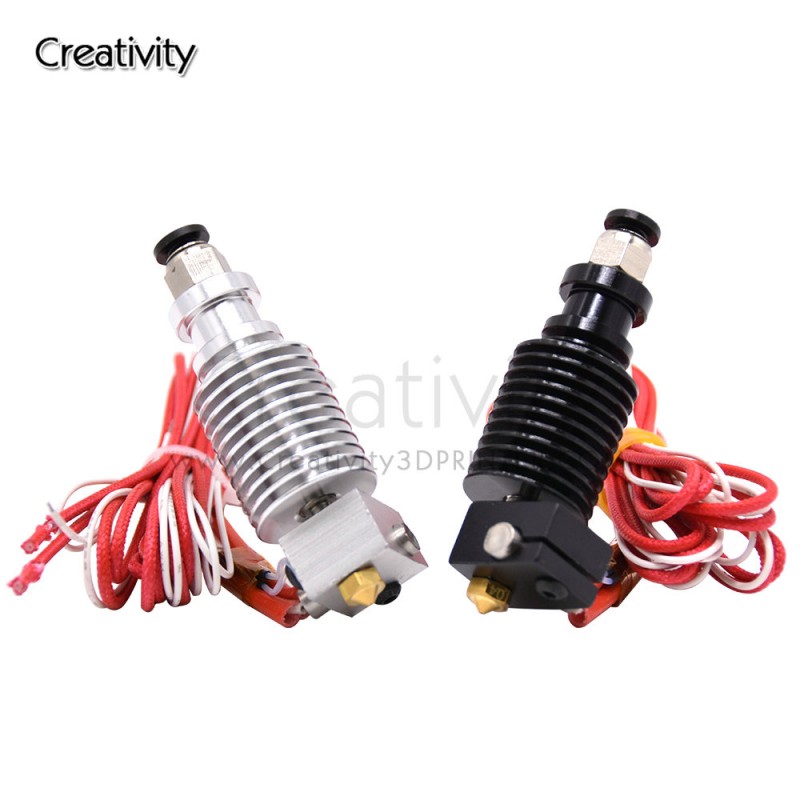

3d Printer Parts Hot...

$9.31 $11.35 Ex Tax: $9.31

12V Hotend kitMaterial: Aluminum & Stainless Steel & BrassInstallation type: external thread connectionScope of application: 3D printerNozzle size: 0.4mmThroat length: 30mmAluminum block dimensions: 20 mm x 20 mm x 10 mmOperating temperature range: -40 ~ + 260°C (-40 ~ +500 °F)Thermistor and..

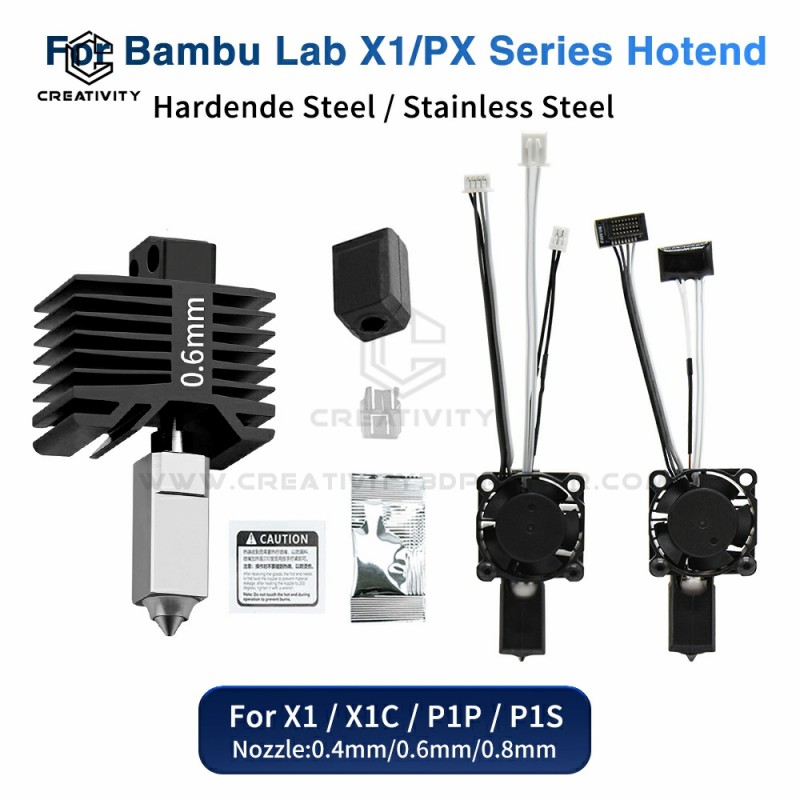

3d printer parts Lab...

$3.66 Ex Tax: $3.66

3d printer parts V5 ...

$28.94 $35.29 Ex Tax: $28.94

3D Printers Parts 2 ...

$8.41 $10.25 Ex Tax: $8.41

DescriptionColor：SilverMaterial：AluminumName: Single Head Extruder Nozzle diameter: 0.4mm Application：3D printer accessoriesPackage Included1 x Single Head Extruder 1 piece 12v/24v 40w Heater1 piece 100K NTC thermistor ShenZhen Creativity Techno..

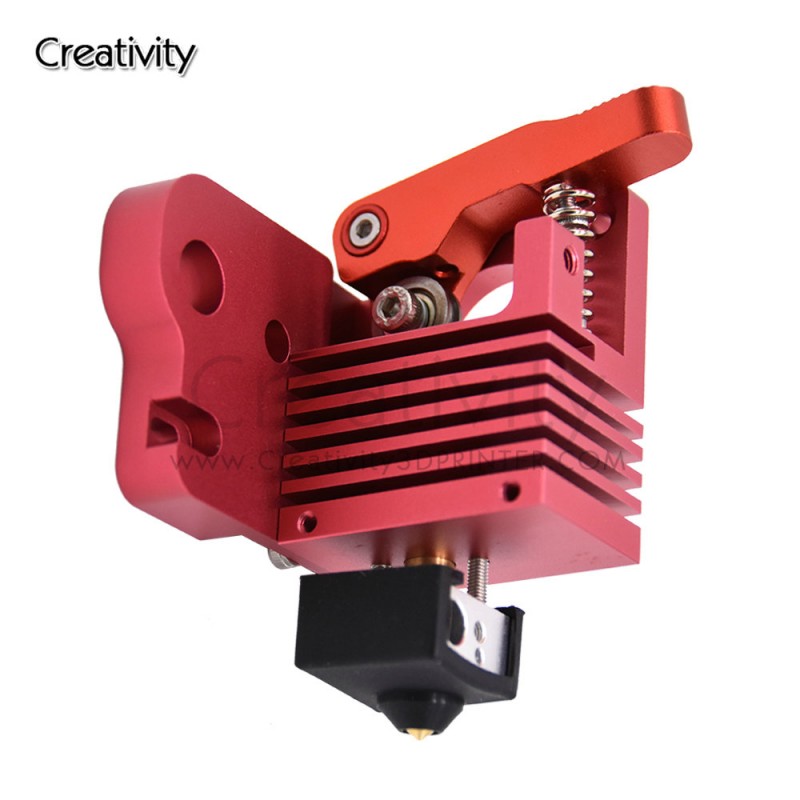

All Metal Direct Ext...

$22.69 $27.67 Ex Tax: $22.69

Assembled 1.75mm Ext...

$8.38 $10.22 Ex Tax: $8.38

Description:Material: Aluminum & Stainless Steel & BrassInstallation type: external thread connectionApplication: CR10Nozzle size: 0.4mm/1.75mmThroat pipe length: 30mmTeflon tube:0204,length:1mHeating tube:12V/24V 40W, Length: 1mThermistor:100K NTC B 3950 ±1% ,Length 1mAluminum block s..
